HIKMICRO Acoustic camera AI56

The Acoustic or Sound Localization Imaging Camera helps you detect improperly attached Electricity cables that create a transition resistance and are likely to spark, leaking gas lines or compressed air lines that have minuscule noise coming from them etc
Article number:
1450900
Delivery time:
1 - 3 Days
Availability:
In stock
Reviews:

€9.995,00 €7.499,00

Excl. tax

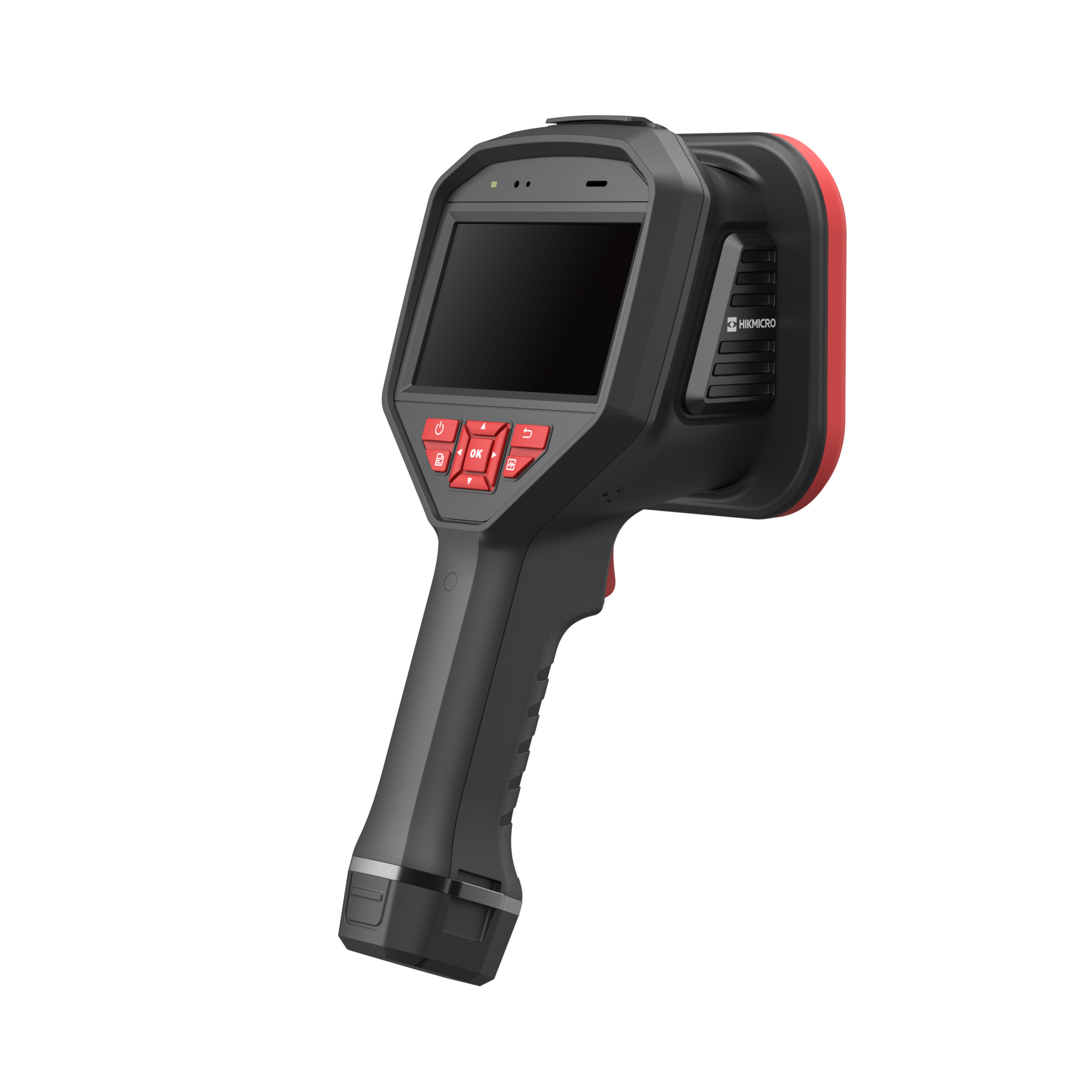

HIKMICRO AI56 Acoustic camera

pro tool for sound source localization

The HIKMIRC0 AI56 acoustic imaging camera is a professional product for locating and photographing sound sources.

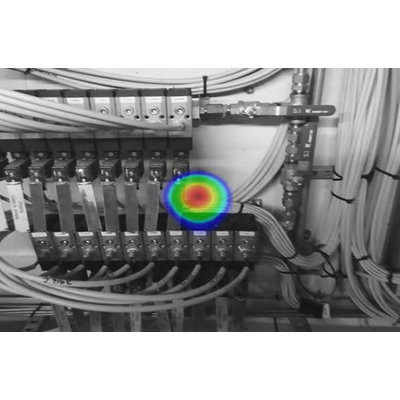

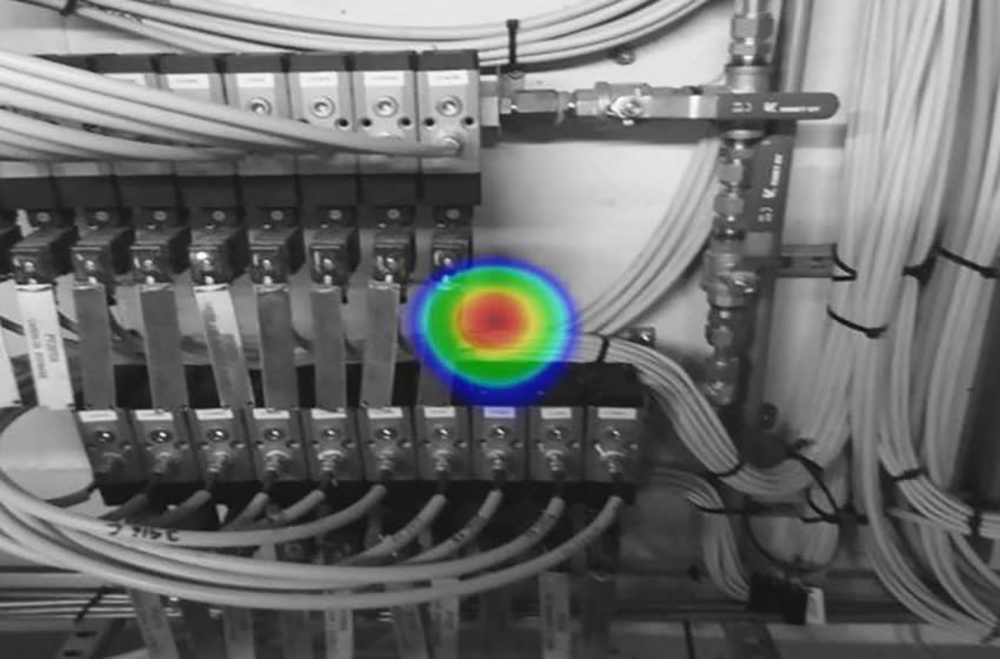

localization. With 61 low-noise MEMS microphones and adjustable bandwidth from 2kHz to 60kHz. 60kHz, the Al56 provides an easy and effective way to locate pressurized air leaks in industrial

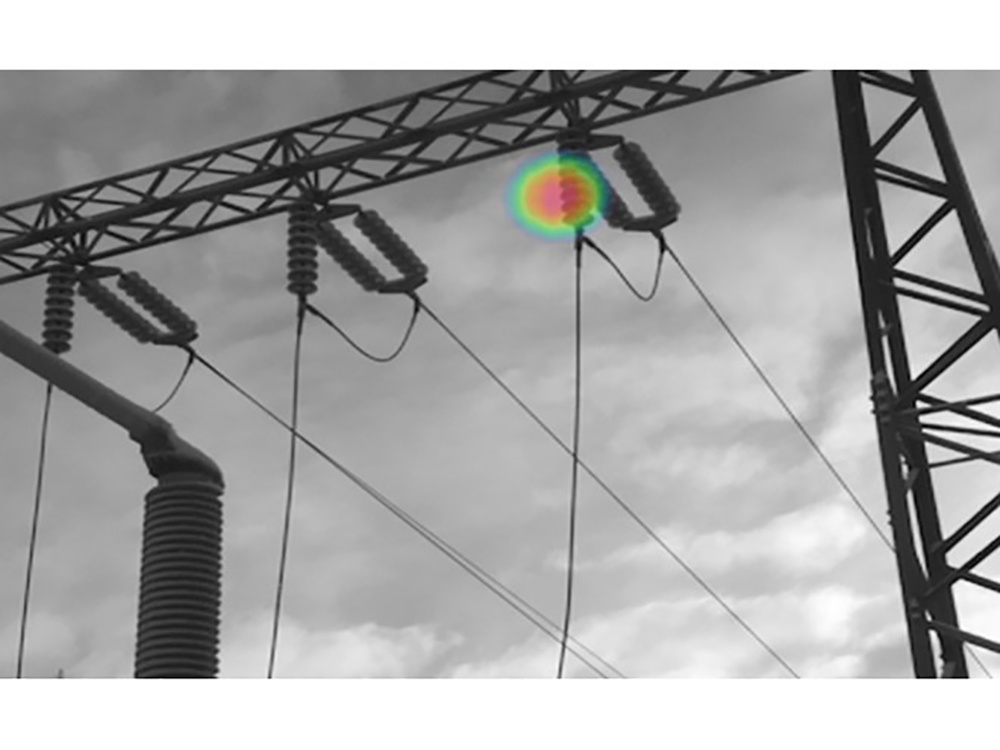

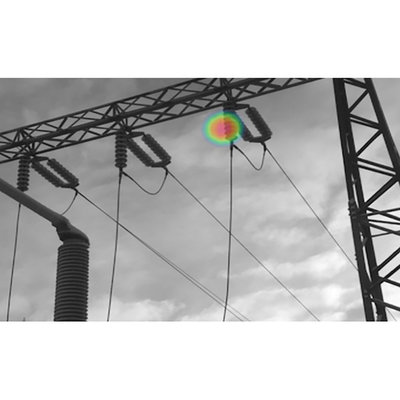

environments or detect partial discharge in high-voltage systems.

Using a large '1.3" LCD Touch screen, the results presented on a digital photograph allow you to quickly
find the source of the problems. The maximum working distance can be up to 100 meters, allowing
you can stay at a safe distance to inspect high voltage equipment.

Using this lightweight and easy-to-use acoustic camera, you can discover potential safety hazards, minimize
troubleshooting, and save you additional costs of equipment failures and downtime.

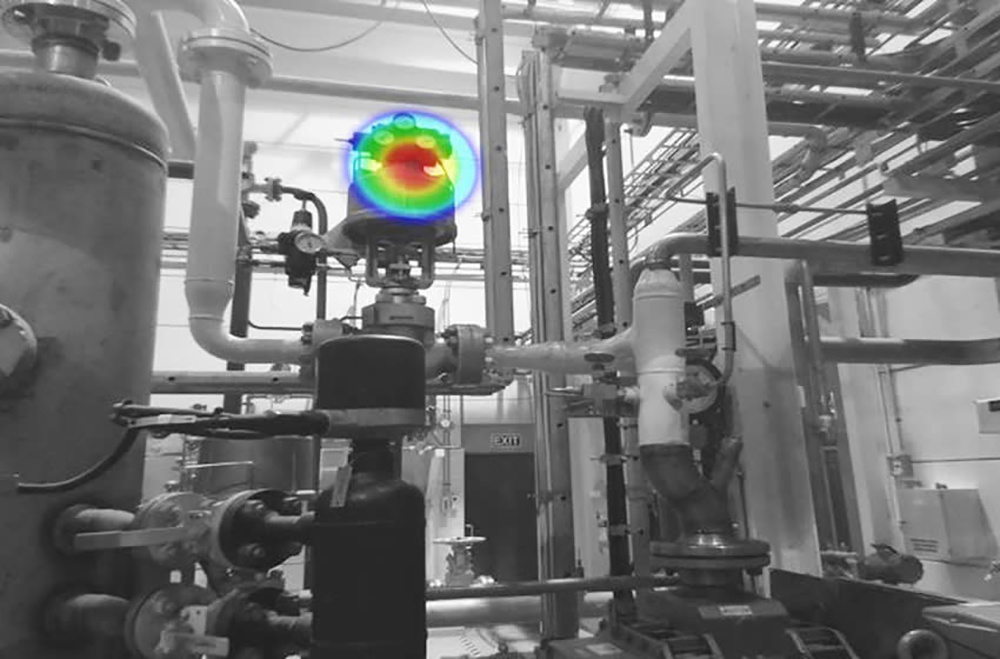

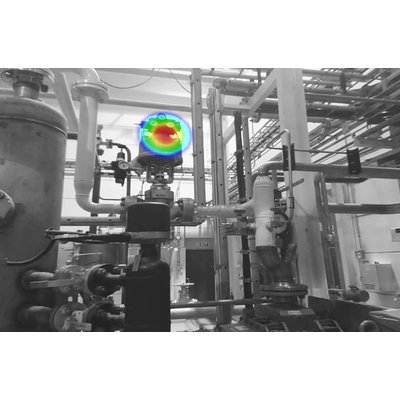

The Acoustic or Sound Localization Imaging Camera helps you detect improperly attached Electricity cables that create a transition resistance and are likely to spark, leaking gas lines or compressed air lines that have minuscule noise coming from them etc.etc.

The AI56 from Hikmicro can sense and locate this very targeted up to 100 meters away and visualize it through the display.

Number of microphones: 64
Bandwidth:  2 kHz to 60 kHz
Distance:  0.2 to 100 m
Acoustic Image Framerate:  25 fps
Acoustic image palette: white black, black white, rainbow, fusion, ironbow, red black, rain, blue red
Sound intensity display: Peak point, midpoint
Acoustic Detection Mode:  Partial discharge detection, gas leakage detection
Built-in Visual Camera:  2688 × 1944 (5 MP)
FOV:  53° H × 28° V
Display: 800 × 480 resolution, 4.3" LCD touch screen
Screen brightness:  Manual / Automatic adjustment
Digital Zoom:  1.0x to 8.0x continuous
Battery Operating Time:  4 hours of continuous running
Wi-Fi:  802.11 b/g/n (2.4 GHz and 5 GHz)
Protection level: IP40
Warranty:  3 years for the entire product and 2 years for the battery
Drop test Height:  1.2 m (3.94 ft)
Temperature range:  -20 °C to 50 °C (-4 °F to 122 °F)
Storage temperature:  -20 °C to 60 °C (-4 °F to 140 °F)
Weight: Approx. 940 g (2.07 lb)
EAN:  6974004642587

Supplied complete with:

Acoustic imaging camera
2x Battery
Duo charging station
Power adapter
wrist strap
USB cable
HDMI Cable
SD Card
Microphone protection cap
Accessories pouch
Quick start manual Hard plastic carrying case
