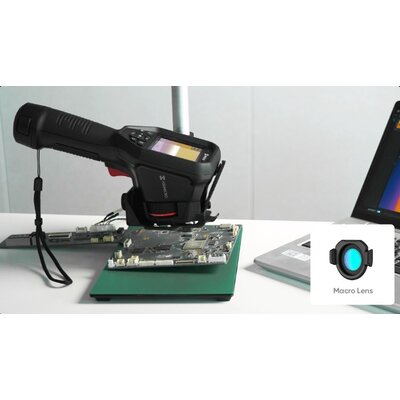

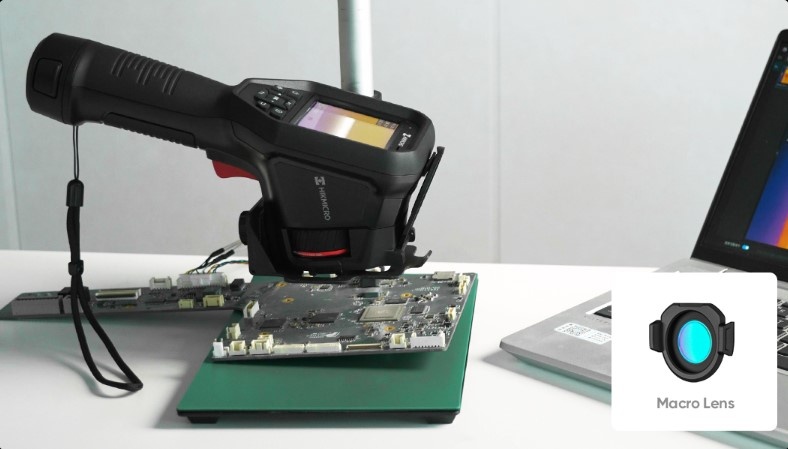

HIKMICRO Macro lens M series MM650 for circuit board components

Macro lens M-serie HM-AHL02-MM650 for circuit board components
Delivery time:
1 - 3 Days
Availability:
In stock
Reviews:
€329,00
Excl. tax

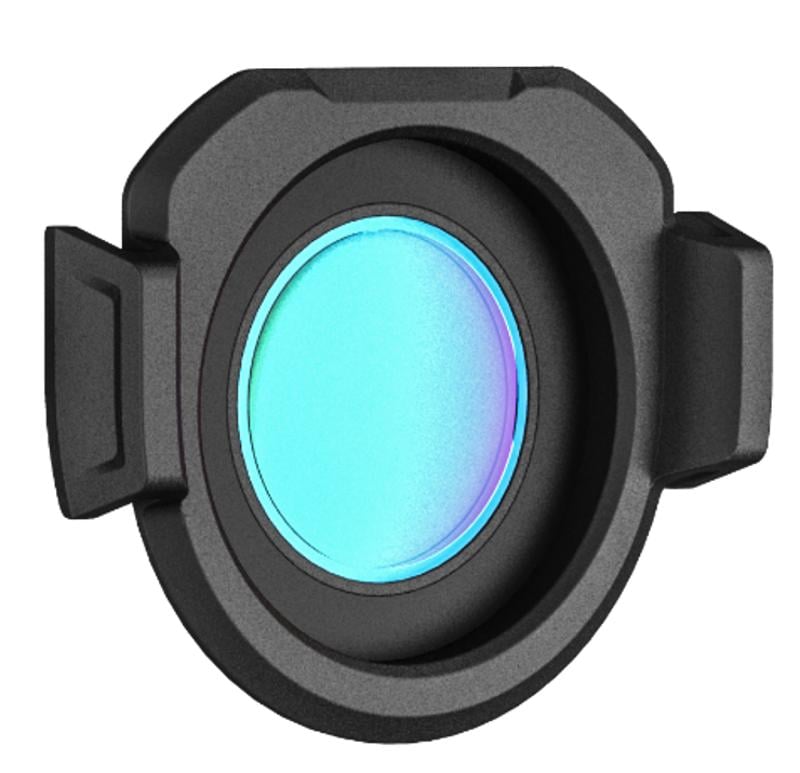

Macro lens M-serie MM650



Focal Length:

M20/M11: 15.4mm(0.051 ft)

M20W/M11W: 5.9mm(0.019 ft)

M30: 15.1mm (0.050 ft)

M60: 14.7mm(0.048 ft)



FOV (Field of View):

M11: 8.96 mm x 6.72 mm

M20: 11.81mm x 8.86mm

M11W: 17.51mm x 13.13mm

M20W: 23.01mm x 17.26mm

M30: 17.74mm x 13.3mm

M60: 19.84mm x 14.88mm



IFOV (Spatial Resolution):

manual focus:50 µm/pixel

focus free:100 µm/pixel



Aperture: 1.0



Min. Focusing Distance: 26.5 mm



General:

Working Temperature Range -20°C to 50°C (-4°F to 122°F)

Weight 15 g(0.03 lb)

Dimension 62.32mm×51.28mm×13.26mm(2.45'' × 2.02'' × 0.52'')
