The MiniK is compatible with both Apple and Android USB-C ports.
It is therefore suitable for iPhones, iPads, and Android smartphones and tablets.

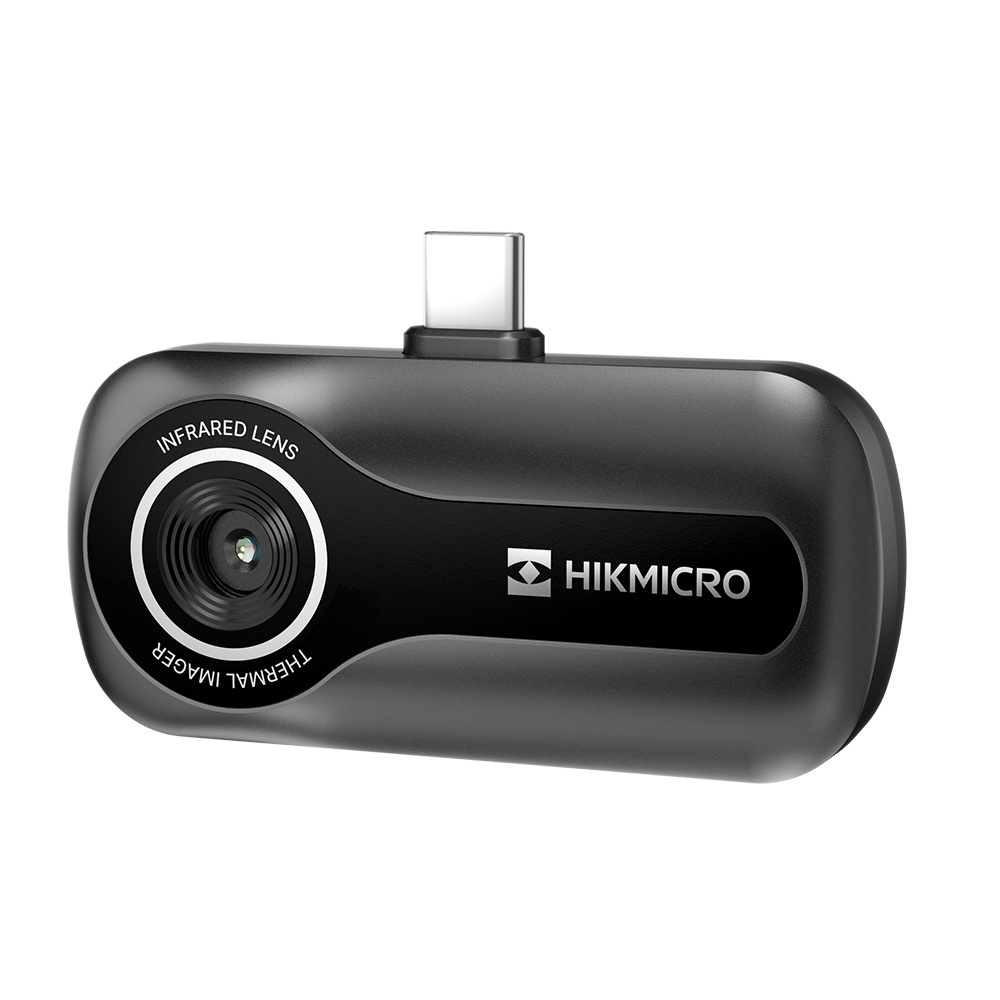

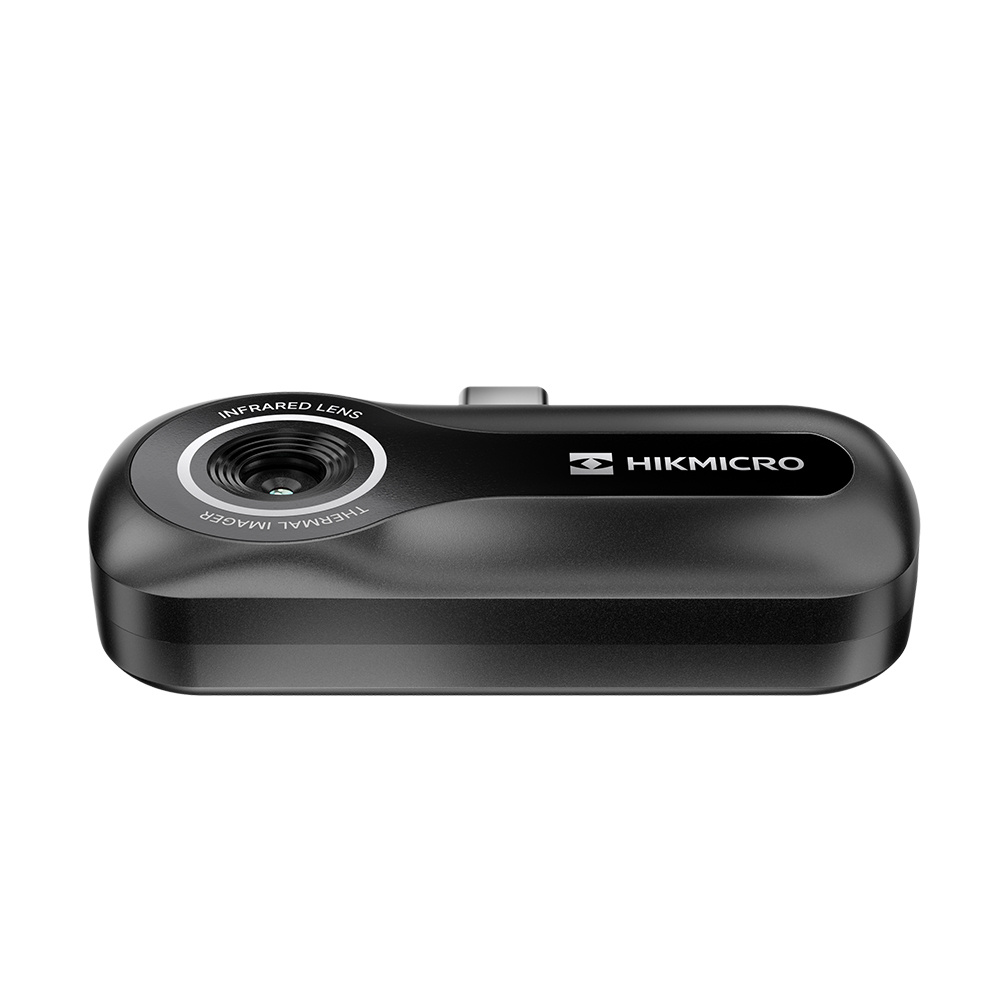

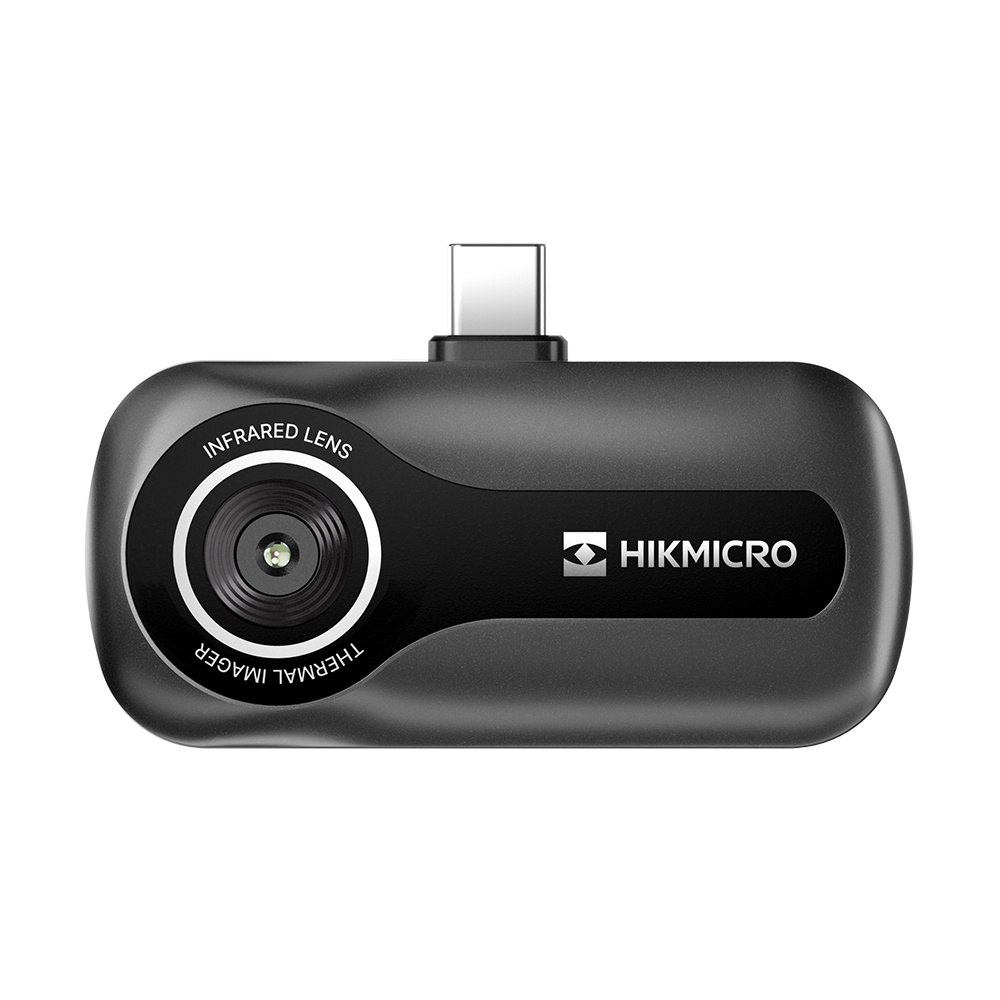

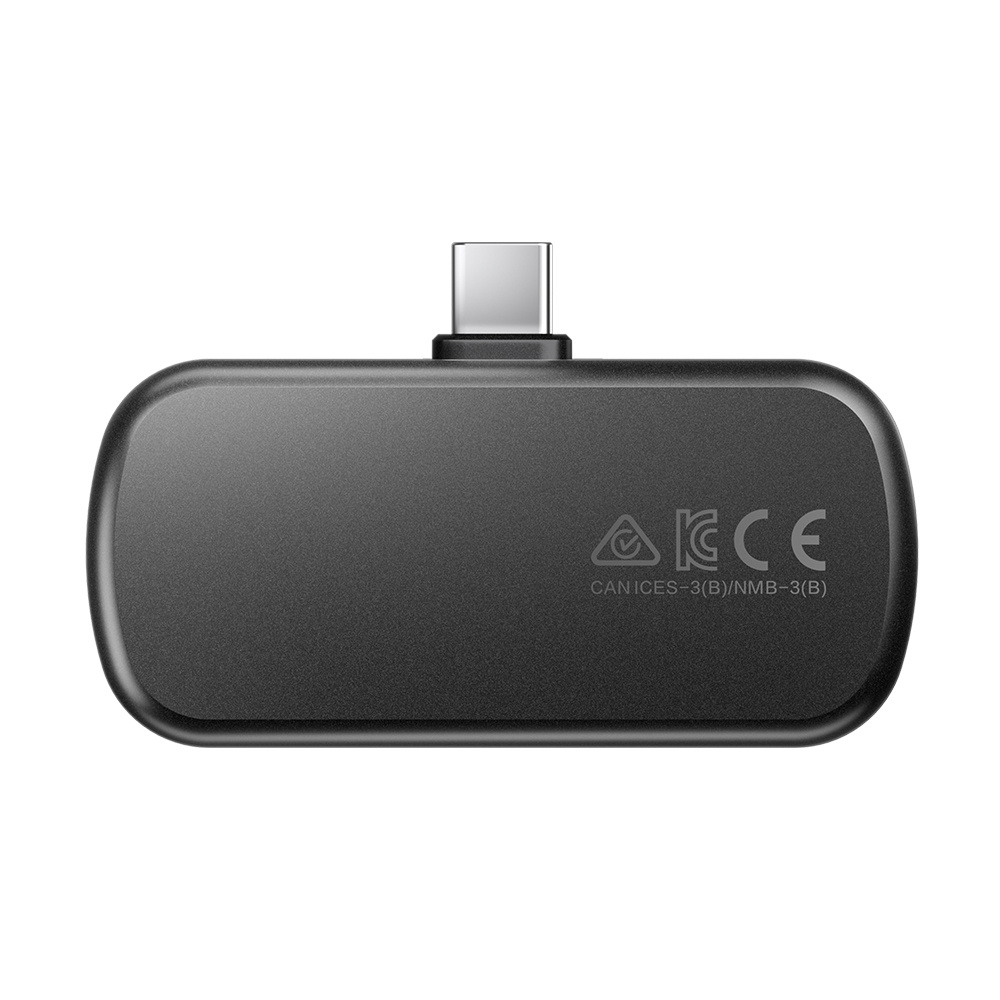

The MiniK is a compact, high-resolution thermal imaging camera, thanks to its Super Resolution feature. Quickly and accurately locate temperature differences that are invisible to the naked eye.

Detect air leaks, plumbing issues, overheated fuses, insulation problems and much more.

Download the free app for plug-and-play functionality.

The MiniK is Hikmicro’s entry-level model

Specifications:
Thermal resolution 96 x 96 pixels
Thermal sensitivity 50 mK (0.05 °C) NETD
Accuracy ± 2 °C or 2 per cent
Optical camera No
Image mode Thermal, Picture-in-picture
Colour palettes Rainbow, Arc, White-hot, Black-hot, Red-hot

Frame rate 25 Hz
Field of view 50° × 50°
Field of view (m at 2 m) 1.8 m × 1.8 m at 2 metres
Focus Autofocus
Temperature alarm Yes
Heat spots Cold spot, Hot spot, Centre spot, Custom spot
Power supply Via mobile phone
Battery life N/A
Charging time N/A
Storage Via mobile phone
File format: JPEG
Protection rating: IP40
Tripod mount: No
Dimensions (L × W × H): 41.5 × 34 × 11 mm
Weight: 20 grams
Warranty: 1 year

Contents:

- Hikmicro MiniK
- Carrying case
- Extension cable for hard-to-reach areas
- Apple Lightning adapter
