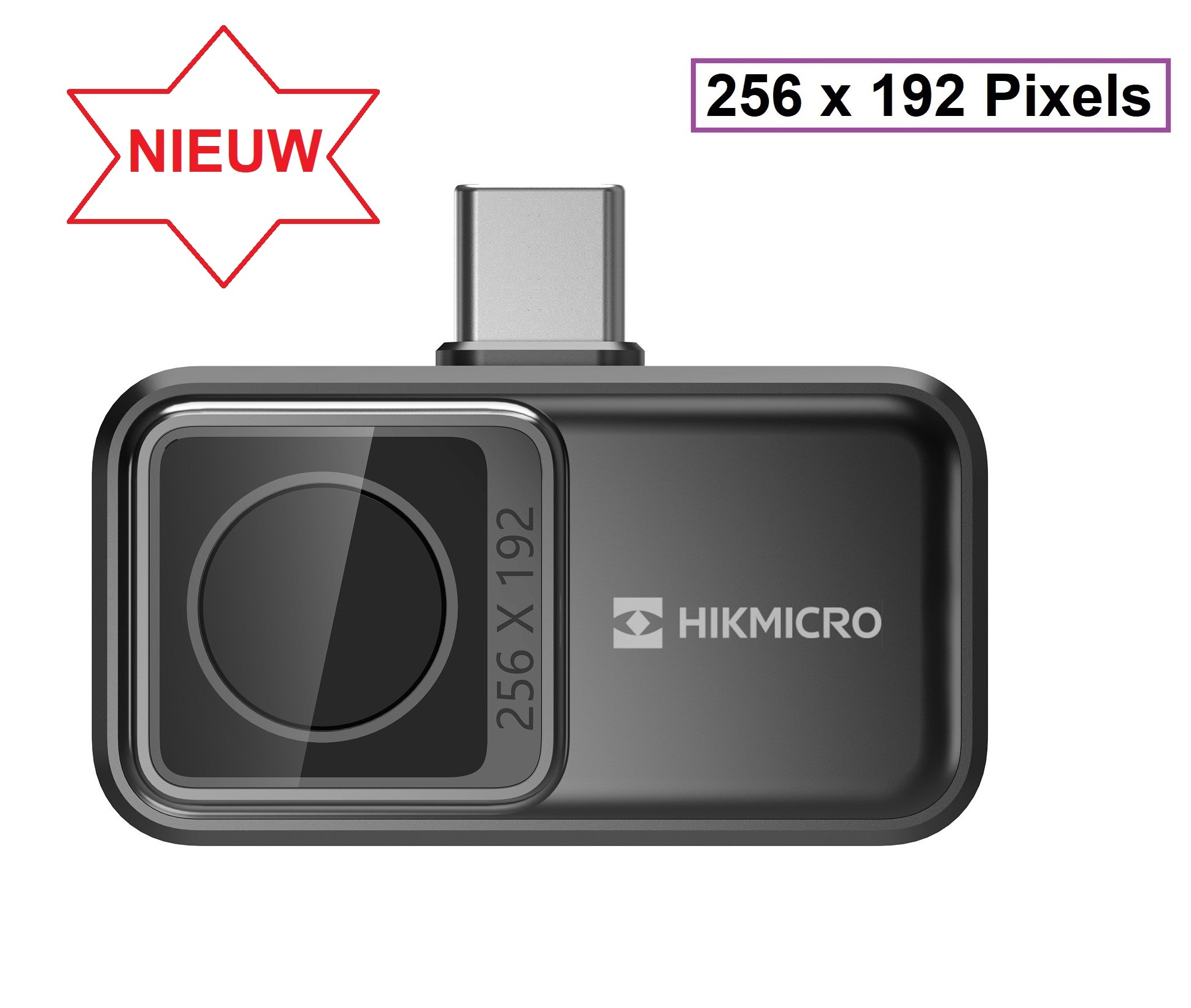

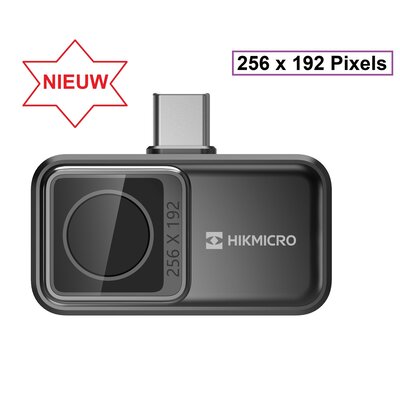

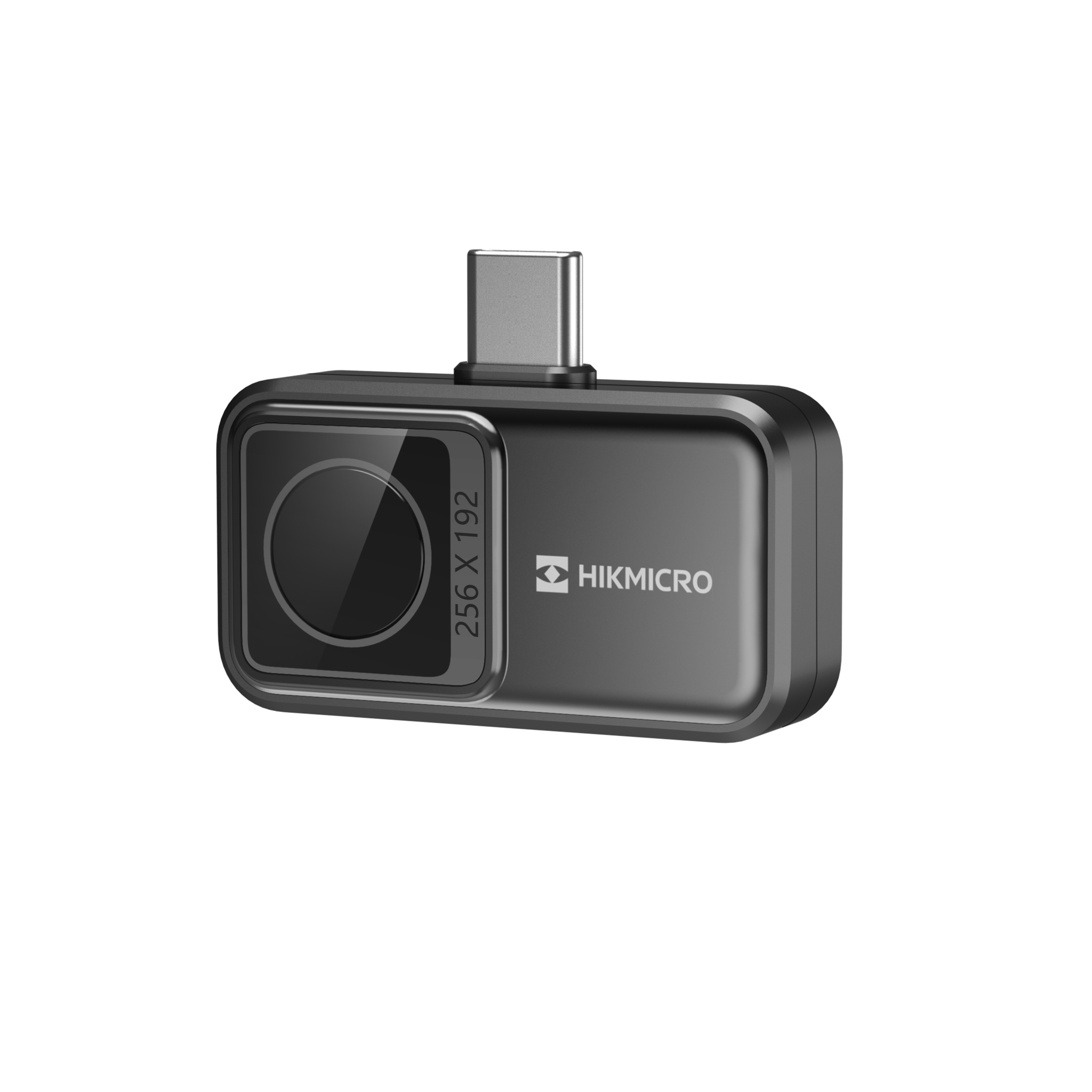

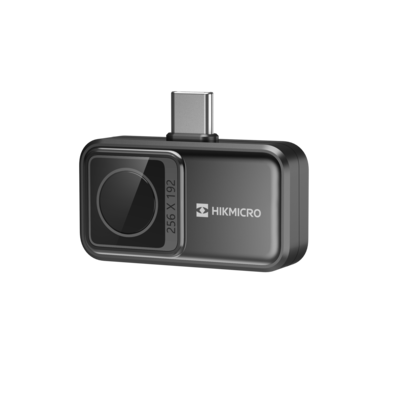

HIKMICRO Mini2 V2 Imaging Camera 256x192 Thermal pixels, 25Hz, USB-C for Apple and Android

Mini2 V2 Thermal Imaging Camera 256x192 Thermal pixels, 25Hz, USB-C connection IOS and adapter to Lightning connection
Article number:
1450964
Delivery time:
1 -3 days
Availability:
In stock
Reviews:

€199,00 €169,00

Excl. tax

HIKMICRO Mini2 V2
USB-C thermal imaging camera with 256x192 IR resolution, 25Hz fastframe, NETD<40mk (0.04°)

Compability list

IR Resolution, 25Hz fastframe, NETD<40mk (0.04°)

The Mini1 USB-C camera for under a SmartPhone is a compact thermal imaging camera with a high resolution, wide temperature range of -20°C to 350°C.

Quickly and accurately locate temperature problems that cannot be seen with the naked eye.

You'll find air leaks, plumbing problems, hot fuses, insulation problems, and more.

The Mini Series thermal camera is a cost-effective and powerful tool for any job you can throw at it.

kunt toewerpen.

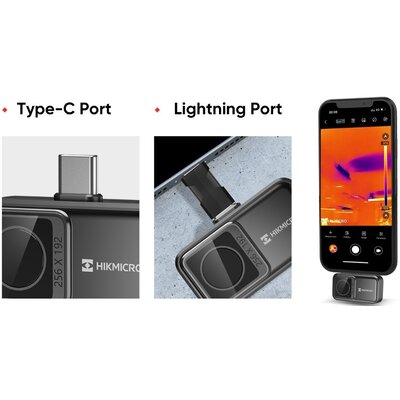

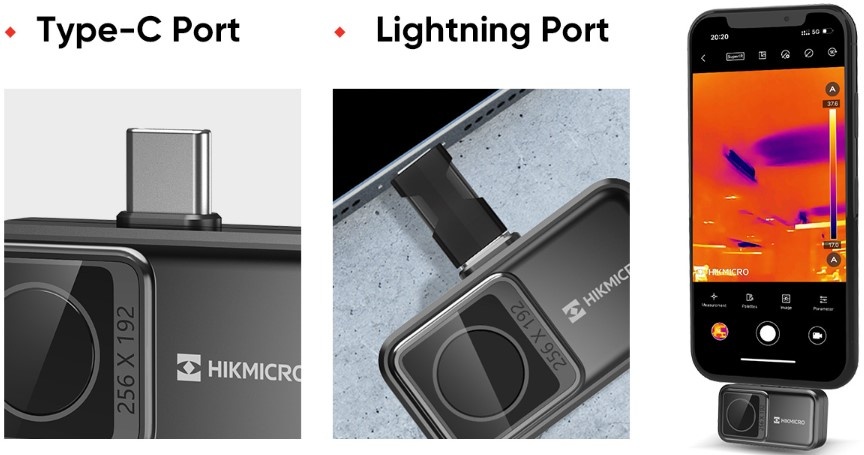

Type-C Port & Lightning Port
HIKIMICRO Mini2 V2 compatible with the latest iPhone 15 series and Android devices. Equipped with Lightning to Type-C adapter suitable for iPhone14 and earlier models.

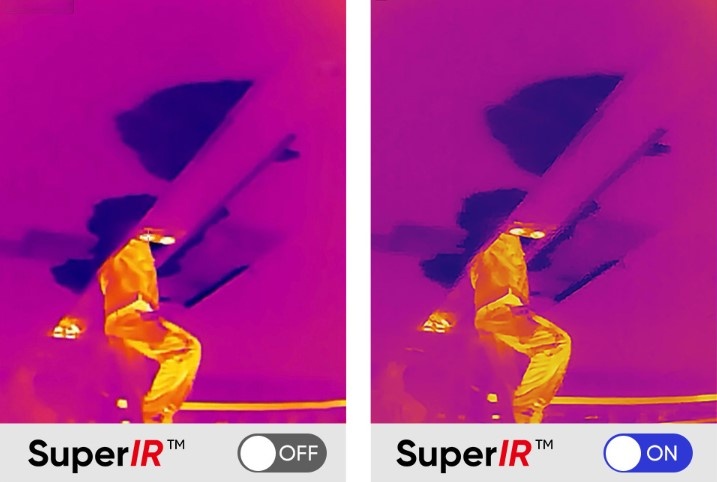

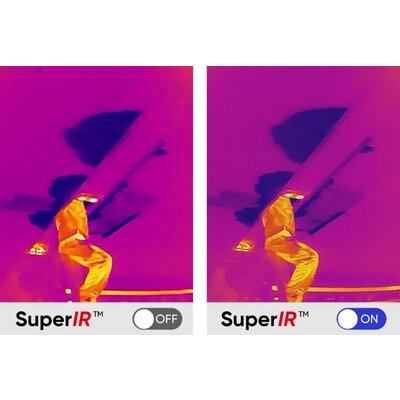

Super Clear Thermal Image
Mini2 V2 features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.
Image & Temperature Measurement
HIKMICRO Mini2 V2 with PIP mode, Custom Palettes and 15 Preset Palettes,
Video and Image Capture make it easier to work.
.
Multiple Professional Settings
Providing professional settings allows you to get the best thermal imaging images and temperature readings of different surfaces.
HIKMICRO VIEWER
HIKMICRO Viewer app allows you to generate reports in the field quickly, customize job site data, adjust measurement settings, add annotations, and share with customers or managers.

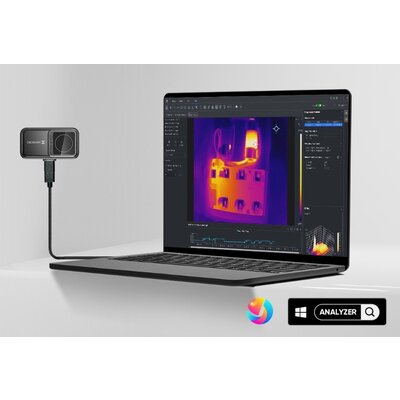

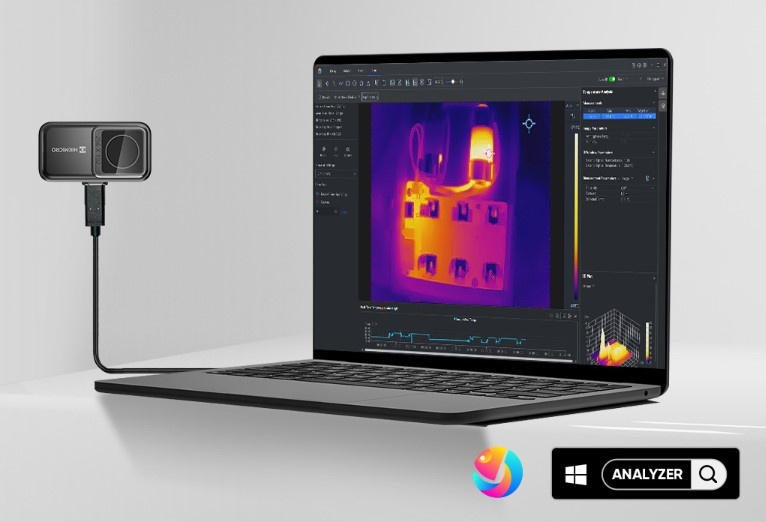

HIKIMICRO ANALYZER
HIKMICRO Analyzer online preview feature is particularly valuable, allowing real-time access to thermal imaging data, which significantly enhances efficiency.
Plug and Play
HIKIMICRO Mini2 V2 Instantly attaches to your iPhone & Android smartphone or tablet and is ready to go in seconds.
*Adapters for Thick Phone Case, compatible with phones that have an Otterbox case.
*Extension Cable for convenient inspection, scan difficult-to-view and hard-to-reach areas.


Specification:

Infrared Image

IR Resolution
256 × 192 (49,152 pixels)
NETD
< 40 mK (@ 25 °C, F#=1.0)
Image Frequency
25 Hz
Detector Pitch
12 μm
Spectral Range
7.5 to 14 μm
Focal Length
3.5 mm
F-number
F1.0
Field of View (FOV)
50° × 37.2°
Focus Mode
Focus Free
Min. Focus Distance
0.2 m (0.66 ft)
Image Display

Image Modes
Thermal/Fusion
Color Palettes
White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color,
Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined
Measurement and Analysis

Object Temperature Range
-20°C to 350°C(-4°F to 662°F )
Accuracy
Max (±2°C/±2%), for ambient temperature 15°C to 35°C
and object temperature above 0°C
Measurement Tools
Center Spot, Hot Spot, Cold Spot User-definable:
3 spots, and 3 rectangles.
Level and Span Mode
Auto/Manual
General

Power Consumption
36 mW
Protection level
IP40
Drop Test Height
1 m (3.28 ft)
Working Temperature Range
-10°C to 50°C (14°F to 122°F )
Storage Temperature Range
-20°C to 60°C (-4°F to 140°F )
Weight
Approx. 20 g (0.044 lb)
Dimensio
42 × 22.5 × 11.2 mm (1.65 × 0.89 × 0.44 in)



PDFCompability
