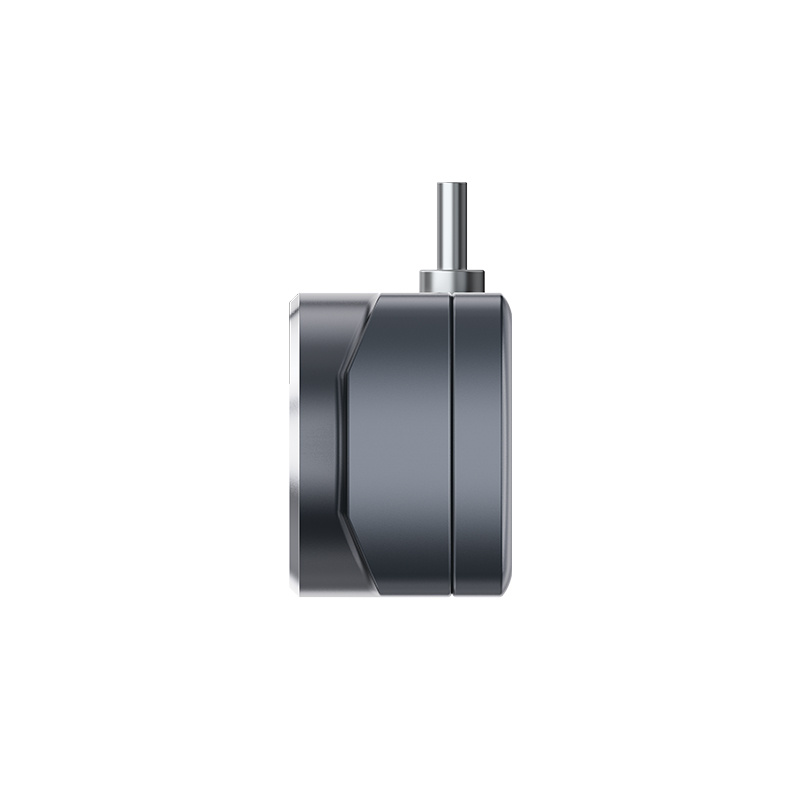

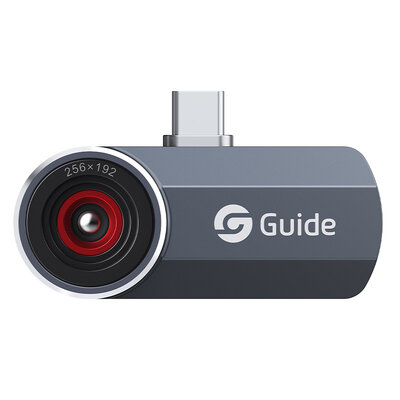

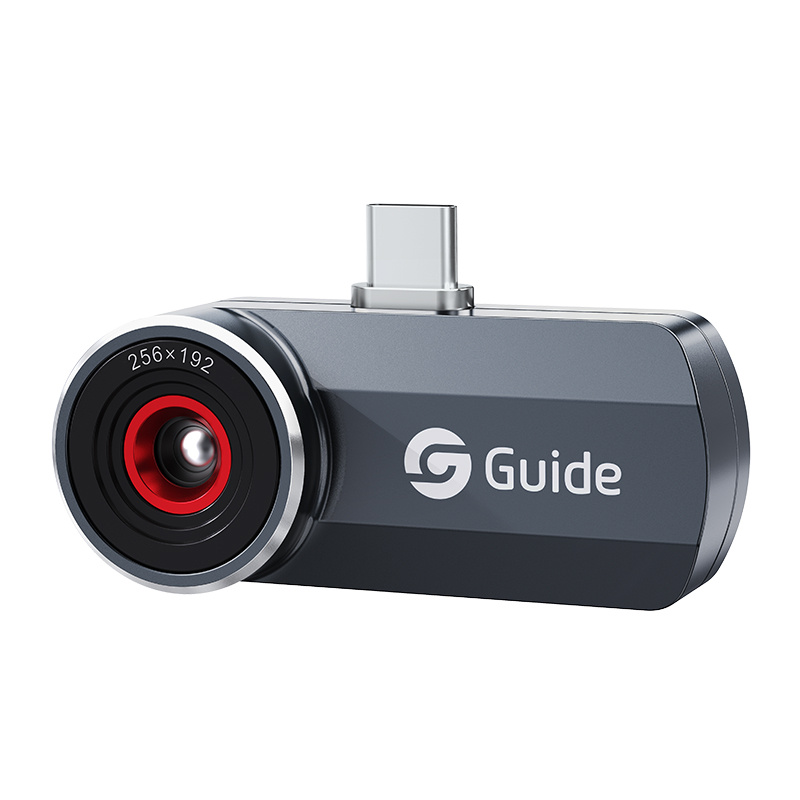

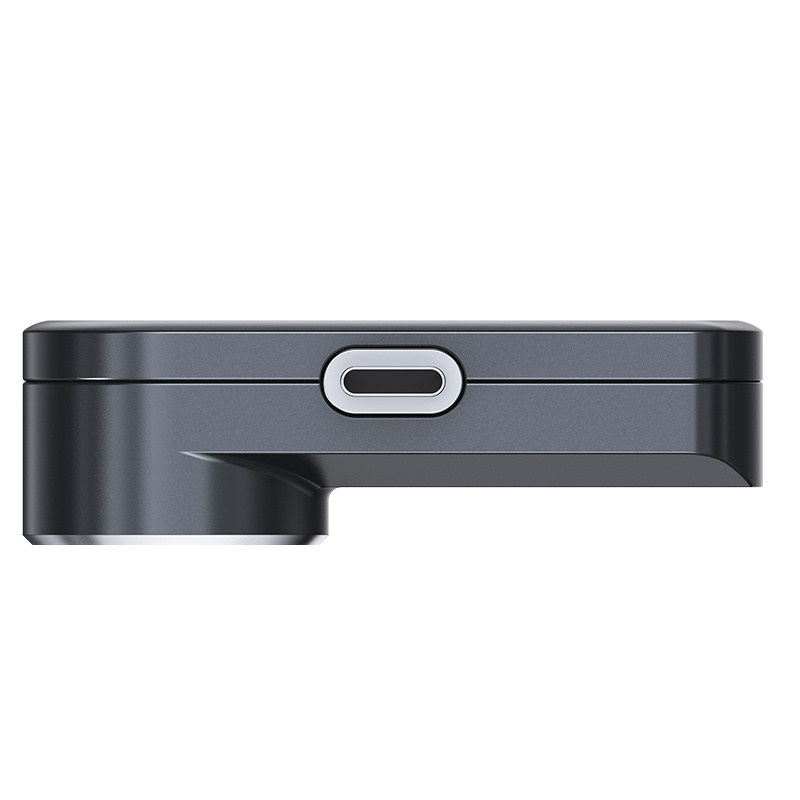

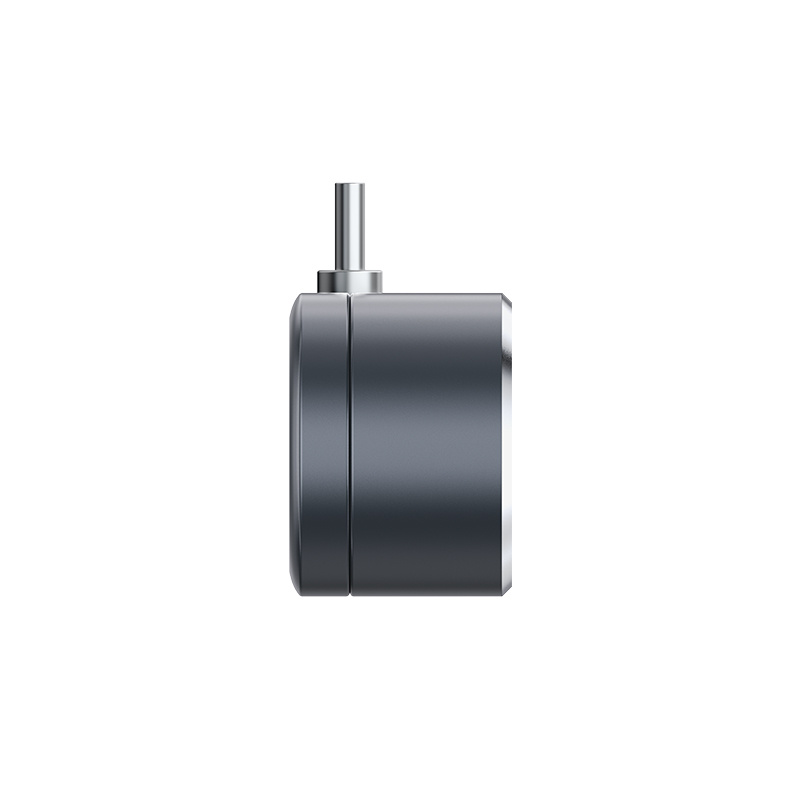

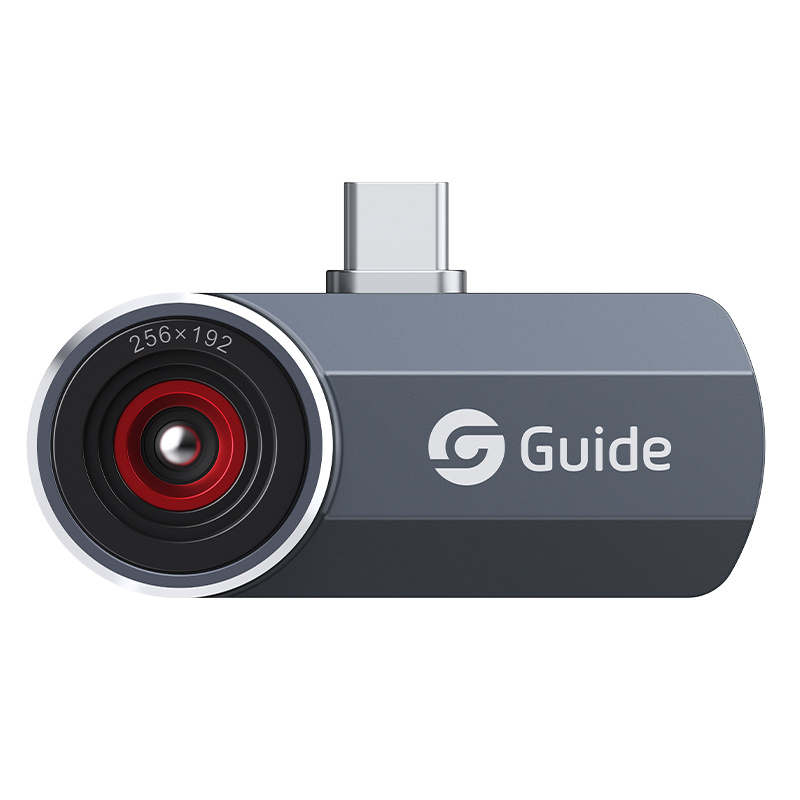

The Guide MobIR ES2 transforms your smartphone or tablet into a fully-fledged thermal imaging camera in an instant. Thanks to its compact, plug-and-play design, the ES2 is ready for immediate use in a wide range of inspection tasks, such as HVAC inspection, electrical fault-finding, PCBA inspection and structural inspections. Connection is simple via USB-C, allowing you to use the same thermal imaging camera on multiple devices.
With a NETD of ≤15 mK, the ES2 accurately captures even small temperature differences. The temperature range of -20 to 550 °C is divided into two automatically switching ranges, enabling you to take measurements quickly and reliably. The 256 × 192 infrared detector is upscaled in real time to 512 × 384, delivering a detailed and sharp thermal image. With a field of view of 56° × 42° and a frame rate of 30 Hz, the ES2 is ideally suited for inspecting, amongst other things, switchboards, printed circuit boards, installations and technical components.
With the free FocusIR app for iOS and Android, you can get the most out of the ES2. Analyse temperatures using point, line and area measurements, choose from 12 different colour palettes or create your own, and set temperature alarms. You can also easily capture and share thermal images and videos.
The ES2 is designed for intensive use. The camera has an IP54 rating, can withstand a drop from up to 2 metres and weighs just 31 grams. As it does not have its own battery, the ES2 is always ready for use: it draws just 400 mW from the connected smartphone or tablet.
The ES2 is also suitable for very small components. With the optional magnetic 15× macro lens, you can capture detailed close-ups of small parts.
Are you using an iPhone 14 or older, or an iPad with a Lightning connector? If so, you’ll need the optional USB-C to Lightning adapter.
Compact, versatile and ready to use straight away: the Guide MobIR ES2 makes professional thermal imaging inspection accessible via your smartphone or tablet.

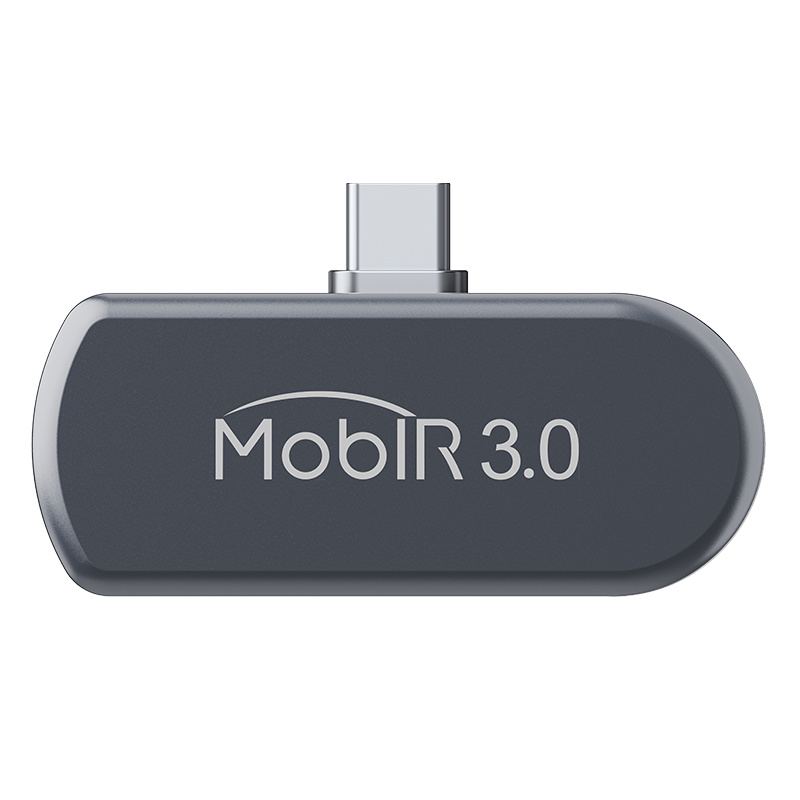

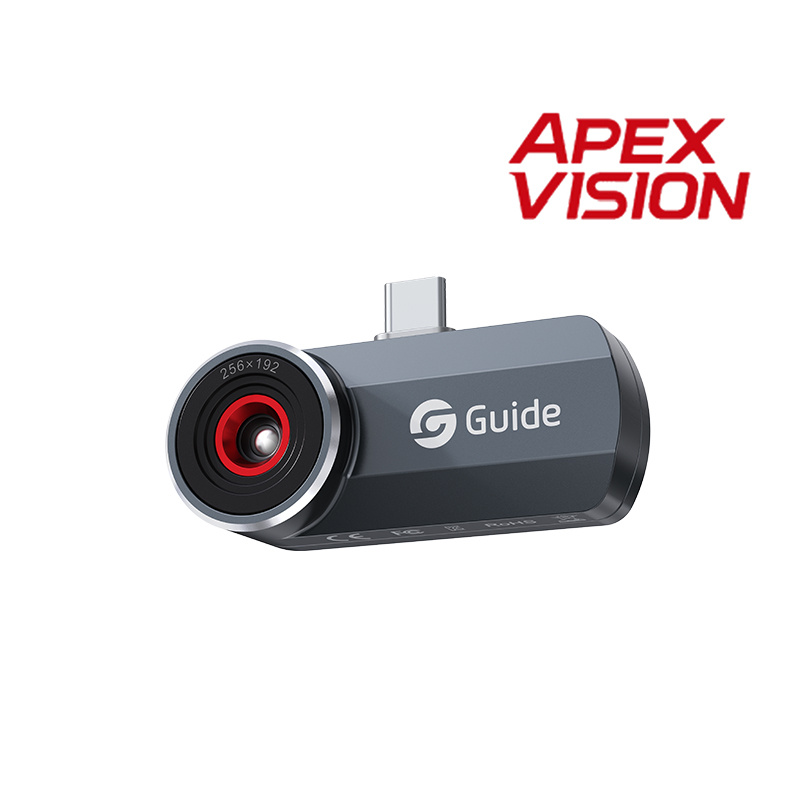

Thanks to the in-house developed ApexVision imaging technology, the MobIR 3.0 offers improved image clarity and reveals finer thermal details. The MobIR 3.0 is compatible with both iOS and Android and can be easily connected to smartphones (USB-C), making it suitable for applications such as home surveillance, inspection of heating, ventilation and air-conditioning systems, diagnosis of electrical faults, equipment maintenance, outdoor adventures and much more. Thanks to its compact plug-and-play design, the device is highly portable and easy to operate anytime, anywhere.
The MobIR 3.0 has a wide field of view for greater coverage. Capture more temperature details across a larger area without having to move the device frequently. Quickly identify large-scale targets and increase the efficiency of your inspection.
